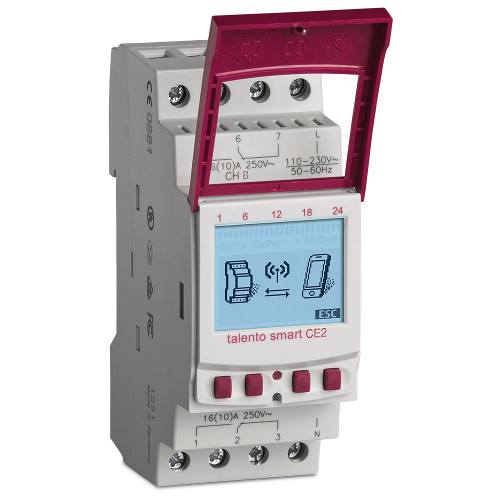

Grasslin Talento Smart CE2 - Module mở rộng kênh

1.850.000₫ 2.050.000₫

Còn hàng


MODULE MỞ RỘNG KÊNH TALENTO SMART CE2

I. Tính năng:

- Tiện ích mở rộng kênh để thiết lập hệ thống với tối đa 8 kênh kêt hợp với Talento Smart S25

- Mở rộng kênh truy cập vào cấu hình và chương trình từ Talento Smart S25 qua Bluetooth 4.0

- Có thể được lập trình trực tiếp thông qua Talento Smart S25, thông qua ứng dụng APP hoặc trên phần mềm PC.

- Chỉ có thể được sử dụng kết hợp với Talento Smart S25.

II.  Ứng dụng:

- Cài đặt thời gian đóng/mở cho đèn hiệu quảng cáo, đèn đường, đèn chiếu sáng cửa sổ, đèn sân vườn , đèn hành lang, đèn tầng hầm…

- Kiểm soát thiết bị như: động cơ, máy bơm, quạt…

- Điều khiển rèm cuốn, rèm che nắng..

- Bật/ tắt chuông cho trường học, nhà thờ, khu công nghiệp…

III. Thông số kỹ thuật:

Electrical specifications
Supply voltage AC 110-230 V ± 10% 50-60 Hz
Current output Phase-independent (zero crossing)
Current output Changeover, potential-free, opening width < 3 mm
Switching capacity - resistive load 16 A / 250 V AC
Switching capacity - inductive load cos. phi 0.6 10 A / 250 V AC
Load incandescent / halogen lamp 2,600 VA
Load ¬uorescent lamps 730 VA (parallel compensated), 1,000 VA (dual circuit)
1,000 VA (not compensated), 1,000 VA (series compensated)
Load compact ¬uorescent lamp 16 x 15 W, 16 x 20 W, 14 x 23 W, 18 x 11 W, 22 x 7 W
Load LED lamps < 2 W Max. 30 W
Load LED lamps 2-8 W Max. 100 W
Load LED lamps > 8 W Max. 120 W
Load sodium lamp - uncompensated 1 x 400 W, 2 x 250 W
Load sodium lamp - parallel compensated 1 x 250 W (32 µF), 1 x 400 W (45 µF), 2 x 150 W (20 µF)
Load mercury vapour lamp - parallel compensated 1 x 400 W (25 µF), 1 x 700 W (40 µF), 2 x 250 W (18 µF),
4 x 125 W (10 µF), 6 x 50 W (7 µF)
Load mercury vapour lamp - uncompensated 1 x 700 W, 2 x 250 W, 4 x 125 W
Switching capacity - DC 300 mA / 60 V DC, 800 mA / 24 V DC
Power consumption <1 VA (standby mode)
Accuracy* ± 0,3 Second /Day at 20 °C
Power reserve no
Electrical connection
Device Screw terminal with wire protection max. 2,5 mm2
, captive screw
terminal
Communication type
Radio signal Bluetooth 4.0
Operating data
Hand switch Automatic mode, Fix ON/OFF, Override
Channels 2
Tamper protection PIN code*, sealable
Programs* Free weekday block formation, ON, OFF, Impulse, Cycle, Astro function,
Random ON, Random OFF
Programming talento smart S25
Counter Hour meter with service function
Display and format
Display lighting White
Format time display* 12-hour format (AM/PM) and 24-hour format (default)
Shortest switching time* ON/OFF 1 minute, pulse 1 second, cycle 1 second
Status display Switching state display
Environmental conditions
Temperature (operation) -20° C ... +55° C
General data
Number of modules 2
Weight 200 g
Material High-temperature resistant, self-extinguishing thermoplastic
Mounting DIN rail
Languages CS, DA, DE, EN, ES, FI, FR, HU, IT, NL, NO, PL, PT, SV
Standard compliance
Protection type IP20
Protection class II, after appropriate mounting
Approvals CE, FCC, VDE

Description: E:\Vu Hoang\Dòng sp Grasslin\Smart Talento\CE2\2.png

Description: E:\Vu Hoang\Dòng sp Grasslin\Smart Talento\CE2\sơ đồ mạch.png
